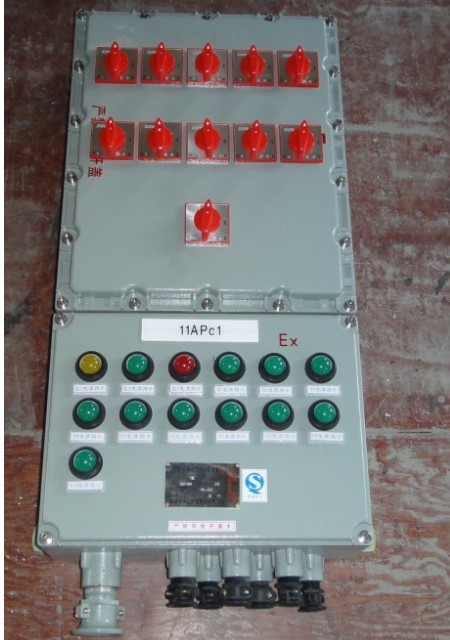

BXM51防爆照明配電箱,鑄鋁防爆配電箱,威創防爆箱BXM51防爆照明配電箱

一、適用環境：　

1、BXM51防爆照明配電箱（以下簡稱配電箱）適用于ⅡA～ⅡC類T1～T6組性氣體環境（1區、2區）和可燃性粉塵環境（20區、21區、22區）

2、在交流50Hz、電壓220V（照明配電箱）或380V（動力配電箱）的線路中作照明或動力電路的配電或通斷之用,還可照明、動力混裝。

3、產品具有過載、短路、漏電保護功能。

主要技術參數 Main technical parameters
回路數        額定電壓（V）      總開關電流（A）   　   　 支路電流（A）       　   防爆標志　 　　　　防護等級　　　 防腐等級　
 2,3,4,6,8     　  380       　   ≤400            　    ≤160   　　 　　   Exde II BT6（C）     IP54（55）  　   WF1

產品特點 Features
適用于控制多臺電動機，還可以照明或儀表配出電源.        A ble to control several motors,also to supply power for illuminating or instrument.
鑄鋁合金或鋼板焊接外殼,表面噴塑.                       The shell is made of diecastedA1-alloy or welded stell plates with plastic-sprayed surface
內裝元件可根據用戶要求選配.                         　 Inner components can be selected by user.
可在箱面或遠控操作,也可兩地操作.                    　 Local or remote control is available,or both.
具有過載,短路,失壓保護.                             　With protections of overload,short-circuit,and voltage-absent.
鋼管或電纜布線均可.                                  Suitable for steel pipe and cable wiring.
符合GB12476,IEC61241標準要求.                   　   Suitable for BG3836-2000,IEC60079 standard request.

訂貨須知 Notice
訂貨時請將支路數及各支路對應的電流,進出線  　      The number of branch and its relative current of circuits shall be indicated,also the
口數量及相應的方向,規格要求明確,如有總開  　　　　 inlet and outlet numbers and their directions,specifications,lf want a chiefswitch,please
關,請注明總開的電流大小或提供圖紙.               　note its current or offer drawing.


產品結構 Structure of product
           規格                                              內裝元件                                        結構類型                                 備注
    SPECIFICATION                           Inner components                           Struchre type                         Remark
 支路電流小于63A                         小型斷路器交流接觸器萬能轉換開                 采用模塊式結構
Branch current not                     關,熱繼電器.                                            實現多回路自由組合.
 More than 63A                          *可根據要求加裝,電流表和互感器.               Modular structure,          進線線口數量及時性
                                               MCB,Ac Contactor Seletor,thermal                       several ciruits can              規格根據
                                               relay.Possible to add ammeter and                                                   用戶要求制定.
                                              CT as required.                                                                               Inlet number and

支路電流大于63A                      塑殼斷路器,交流接觸器,                               采用大殼體合.
Branch current not                     萬能轉換開關,熱繼電器.                               Big enclosure
More than 63A                                 MCCB,AC Contactor,                                              combined.
                                                            selector,thermal relay.

二、BXM51防爆照明配電箱,鑄鋁防爆配電箱,威創防爆箱BXM51防爆照明配電箱技能參數　

三、BXM51防爆照明配電箱,鑄鋁防爆配電箱,威創防爆箱BXM51防爆照明配電箱商品特色

1.本商品選用ZL102鋁合金限制成型,為復合型組合式配電箱,主腔為隔爆型,止口布局,接線箱為增安型。

2.主腔內可裝置5N、C65N等系列小型斷路器及信號燈、40A以下溝通接觸器、熱繼電器等,接線箱內裝有進出線接線端子,殼表里均設有接地裝置。

四、品質保證

本產品在生產制作過程中步步檢驗，經出產檢驗合格后出廠，嚴格保證產品的質量安全；產品出廠外殼質保期為3年，其他元件質保期為1年，在質保期內產品質量由我公司負責；
