邁絡思Mellanox MBF2H332A-AENOT MBF2H332A-AEEOT MBF2H332A-AECOT 25G SFP+DPU 雙口智能網卡TEL:13910098771
Mellanox邁絡思 MCX623432AS-ADAB 25G DX 雙口OCP3.0網卡MCX75310AAS-NEAT 400g單口網卡
NVIDIA MBF2H332A-AENOT BlueField-2 SmartNIC P-Series DPU 25GbE Dual-Port SFP56 PCIe Gen4 x8 Crypto Disabled 16GB On-Board DDR 1GbE OOB Management Tall Bracket HHHL（非加密）DPU數據處理單元MCX631432AN-ADAB ellanox ConnectX-6 Lx EN adapter card, 25GbE, Dual-port SFP28,PCIe 4.0 x8邁絡思光纖網卡MCX631432AN-ADAB ConnectX-6 Lx EN adapter card, 25GbE OCP3.0, w/ Host mgmt , Dual-port SFP28, PCIe 4.0 x8, No Crypto光纖網卡MCX623430MS-CDAB ConnectX-6 25GB QSFP28雙口IB 光纖網卡MCX623432AS-ADAB ConnectX-6 25GB QSFP28雙口IB 光纖網卡MCX65310***-ECAT MCX516A-CCAT MCX621102AN-ADAT MCX623102AN-ADAT MCX556A-EDAT 光纖網卡

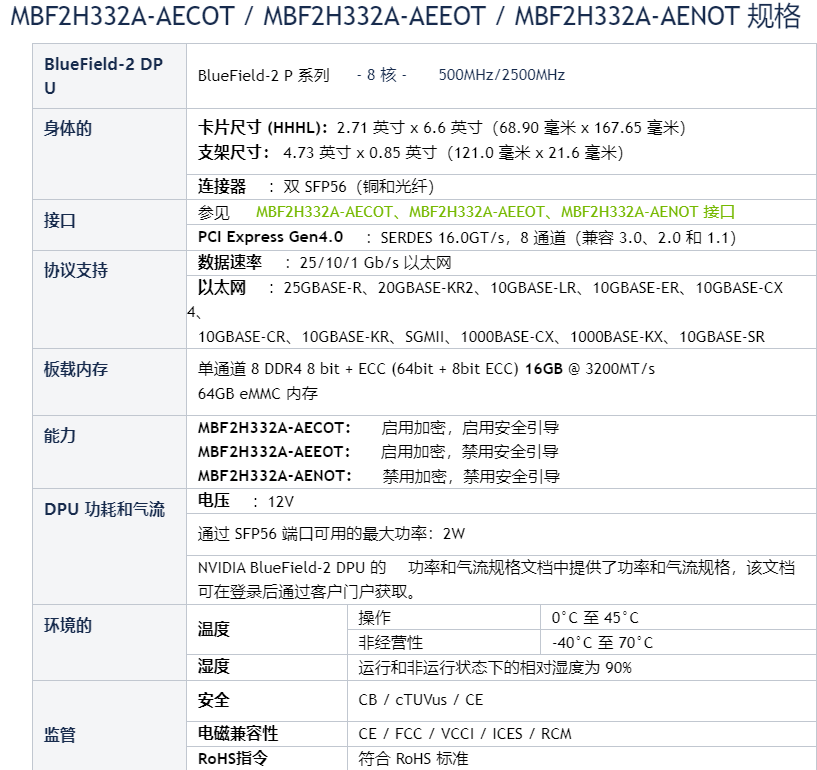

NVIDIA MBF2H332A-AENOT BlueField-2 SmartNIC （MBF2H332A-AENOT） 技術參數
NVIDIA MBF2H332A-AENOT BlueField-2 SmartNIC P-Series DPU 25GbE Dual-Port SFP56 PCIe Gen4 x8 Crypto Disabled 16GB On-Board DDR 1GbE OOB Management Tall Bracket HHHL（非加密）
Technology :Ethernet
Max Speed :25GbE
Connector Type : QSFP56
Ports : Dual
25GbE雙端口SFP56 PCIe Gen4 x8加密禁用16GB板載DDR 1GbE OOB管理高支架HHL
芯片上的數據中心基礎設施
英偉達BLUVELD-2數據處理單元（DPU）是一個數據中心基礎設施，它為傳統的企業、高性能計算（HPC）和現代云工作負載優化，提供了一組廣泛的加速軟件定義的網絡、存儲、安全和管理服務。BlueField-2 DPU使企業能夠將其IT基礎設施轉變為進的數據中心，這些數據中心經過加速、完全可編程，并配備零信任安全性，以防止數據泄露和網絡攻擊。
安全
硬件信任根
正則表達式（RegEx）匹配處理器加速
硬化隔離層
IPsec/TLS和XTS加密
有狀態防火墻加速的連接跟蹤
存儲
GPUDirect存儲
通過NVMe快照存儲虛擬化實現的彈性塊存儲
加速器的NVMe
VirtIO-blk加速器
網絡
RoCE，零接觸RoCE
GPU指令
病毒網絡加速器
加速交換和數據包處理（ASAP2）
OVS和OVN加速
| OPN | Marketing Description |
|---|---|
| MCX65110***-EDAT | ConnectX-6 VPI adapter card, 100Gb/s (HDR100, EDR IB and 100GbE, single-port QSFP56, PCIe4.0 x8, tall bracket |
| MCX65310***-HDAT | ConnectX-6 VPI adapter card, HDR IB (200Gb/s) and 200GbE, single-port QSFP56, PCIe4.0 x16, tall bracket |
| ConnectX-6 VPI adapter card, HDR IB (200Gb/s) and 200GbE, dual-port QSFP56, PCIe3.0/4.0 x16, tall bracket |
|
| ConnectX-6 VPI adapter card, 100Gb/s (HDR100, EDR IB and 100GbE), single-port QSFP56, PCIe3.0/4.0 x16, tall bracket |
|
| ConnectX-6 VPI adapter card, 100Gb/s (HDR100, EDR IB and 100GbE), dual-port QSFP56, PCIe3.0/4.0 x16, tall bracket |
|
| MCX68310***N-HDAT | ConnectX-6 DE InfiniBand adapter card, HDR, single-port QSFP, PCIe 3.0/4.0 x16, No Crypto, Tall Bracket |
| MCX65310***-HDAL | ConnectX-6 VPI adapter card, HDR IB (200Gb/s) and 200GbE, single-port QSFP56, PCIe4.0 x16, cold plate for liquid-cooled Intel? Server System D50TNP platforms, tall bracket, ROHS R6 |
| ConnectX-6 VPI adapter card, HDR IB (200Gb/s) and 200GbE, dual-port QSFP56, PCIe4.0 x16, cold plate for liquid-cooled Intel? Server System D50TNP platforms, tall bracket, ROHS R6 |
|
| MCX65410***-HCAT | ConnectX-6 VPI adapter card kit, HDR IB (200Gb/s) and 200GbE, single-port QSFP56, Socket Direct 2x PCIe3.0 x16, tall brackets |
|
ConnectX-6 VPI adapter card, HDR IB (200Gb/s) and 200GbE, dual-port QSFP56, Socket Direct 2x PCIe3.0/4.0x16, tall bracket |
|
| ConnectX-6 VPI adapter card, 100Gb/s (HDR100, EDR InfiniBand and 100GbE), dual-port QSFP56, Socket Direct 2x PCIe3.0/4.0 x16, tall bracket |
|
| MCX65310***-EFAT | ConnectX-6 VPI adapter card, 100Gb/s (HDR100, EDR IB and 100GbE), single-port QSFP56, PCIe3.0/4.0 Socket Direct 2x8 in a row, tall bracket |
| ConnectX-6 VPI adapter card, 100Gb/s (HDR100, EDR IBand100GbE), dual-port QSFP56, PCIe3.0/4.0 Socket Direct 2x8 in a row, tall bracket |
|
|
Part Number |
MCX65110***-EDAT |
|---|---|
|
Form Factor/Dimensions |
PCIe Half Height, Half Length / 167.65mm x 68.90mm |
|
Data Transmission Rate |
Ethernet: 10/25/40/50/100 Gb/s |
|
Network Connector Type |
Single-port QSFP56 |
|
PCIe x8 through Edge Connector |
PCIe Gen 3.0 / 4.0 SERDES @ 8.0GT/s / 16.0GT/s |
|
RoHS |
RoHS Compliant |
|
Adapter IC Part Number |
MT28908A0-XCCF-HVM |
|
Part Number |
MCX65310***-ECAT |
MCX653106A-ECAT |
MCX65310***-HDAT |
MCX653106A-HDAT |
|---|---|---|---|---|
|
Form Factor/Dimensions |
PCIe Half Height, Half Length / 167.65mm x 68.90mm |
|
|
|
|
Data Transmission Rate |
Ethernet: 10/25/40/50/100 Gb/s |
Ethernet: 10/25/40/50/100/200 Gb/s |
|
|
|
Network Connector Type |
Single-port QSFP56 |
Dual-port QSFP56 |
Single-port QSFP56 |
Dual-port QSFP56 |
|
PCIe x16 through Edge Connector |
PCIe Gen 3.0 / 4.0 SERDES @ 8.0GT/s / 16.0GT/s |
|
|
|
|
RoHS |
RoHS Compliant |
|
|
|
|
Adapter IC Part Number |
MT28908A0-XCCF-HVM |
|
|
|
|
Part Number |
MCX65310***-HDAL |
MCX653106A-HDAL |
|---|---|---|
|
Form Factor/Dimensions |
PCIe Half Height, Half Length / 167.65mm x 68.90mm |
|
|
Data Transmission Rate |
Ethernet: 10/25/40/50/100/200 Gb/s |
|
|
Network Connector Type |
Single-port QSFP56 |
Dual-port QSFP56 |
|
PCIe x16 through Edge Connector |
PCIe Gen 3.0 / 4.0 SERDES @ 8.0GT/s / 16.0GT/s |
|
|
RoHS |
RoHS Compliant |
|
|
Adapter IC Part Number |
MT28908A0-XCCF-HVM |
|
|
Part Number |
MCX65410***-HCAT |
MCX654106A-HCAT |
MCX654106A-ECAT |
|---|---|---|---|
|
Form Factor/Dimensions |
Adapter Card: PCIe Half Height, Half Length / 167.65mm x 68.90mm |
|
|
|
Data Transmission Rate |
Ethernet: 10/25/40/50/100/200 Gb/s |
Ethernet: 10/25/40/50/100 Gb/s |
|
|
Network Connector Type |
Single-port QSFP56 |
Dual-port QSFP56 |
|
|
PCIe x16 through Edge Connector |
PCIe Gen 3.0 / 4.0SERDES@ 8.0GT/s / 16.0GT/s |
|
|
|
PCIe x16 through Auxiliary Card |
PCIe Gen 3.0SERDES@ 8.0GT/s |
|
|
|
RoHS |
RoHS Compliant |
|
|
|
Adapter IC Part Number |
MT28908A0-XCCF-HVM |
|
|
|
Part Number |
MCX65310***-EFAT |
MCX653106A-EFAT |
|---|---|---|
|
Form Factor/Dimensions |
PCIe Half Height, Half Length / 167.65mm x 68.90mm |
|
|
Data Transmission Rate |
Ethernet: 10/25/40/50/100 Gb/s |
|
|
Network Connector Type |
Single-port QSFP56 |
Dual-port QSFP56 |
|
PCIe x16 through Edge Connector |
PCIe Gen 3.0 / 4.0 SERDES @ 8.0GT/s / 16.0GT/s Socket Direct 2x8 in a row |
|
|
RoHS |
RoHS Compliant |
|
|
Adapter IC Part Number |
MT28908A0-XCCF-HVM |
|
